Stone-coated steel roofing specs, install guide and warranty.
Download the spec sheet, the installation guide and the warranty right now. SDS, test reports and CAD files are an email away. No calling around and no waiting on a rep.
Everything your building department will ask for.
Product Spec Sheets
Full material, coverage, weight, gauge, and profile detail for the WeatherLok system.
Download the spec sheet (PDF) What's insideSafety Data Sheets (SDS)
Handling, storage, and safety information for jobsite and warehouse compliance.
Email us for this document Download (PDF), coming soonInstallation Guides & Details
Step-by-step installation, flashing, ridge, and detail drawings for the crew on the roof.
Download the installation guide (PDF) What's insideCode Approvals & Test Reports
ICC-ES, UL, wind, and hail reports. Published as each issued report is verified and in hand.
Request the report Download (PDF), coming soonCAD / BIM & Submittal Files
Drawing files and submittal packages for architects specifying WeatherLok into a set.
Request the files Download (PDF), coming soon50-Year Transferable Warranty
50-year transferable warranty, all labor and materials against any factory defects.
Download the warranty (PDF)The spec sheet, installation guide and warranty download directly. SDS, code approvals and CAD files are available on request while we finish preparing them. Ratings are published only when the issued report is in hand. We never publish an unverified rating.
What's in the spec sheet and the installation guide.
Read it here first, then download the PDF when you need it on paper.

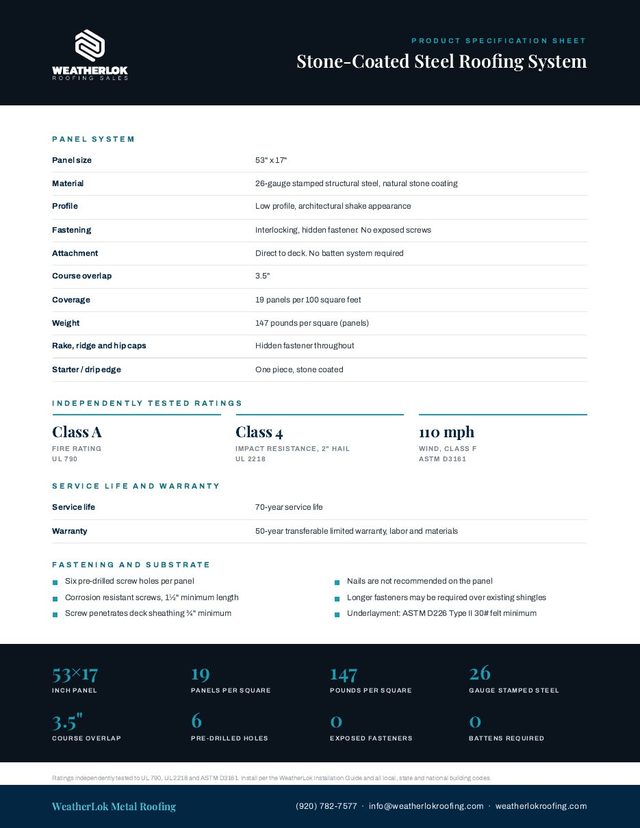

The product spec sheet
Page one covers the panel system. Each panel is 53 by 17 inches, made of 26-gauge stamped structural steel with a natural stone coating. The panels interlock, the fasteners stay hidden, and they go straight onto the deck with no battens. Each course overlaps the one below by 3.5 inches, 19 panels cover 100 square feet, and the panels weigh 147 pounds per square.
Next come the three independently tested ratings: Class A fire, Class 4 impact for 2-inch hail, and 110 mph wind, each listed with its UL or ASTM test standard. Page one ends with the 70-year service life and the minimums for screws, deck and underlayment.
Page two lists every trim and accessory with its dimensions: valley cover, starter course, side wall, head wall, gable cover, ridge and hip tile, J channel, end cap, flat sheet and the vent panel.

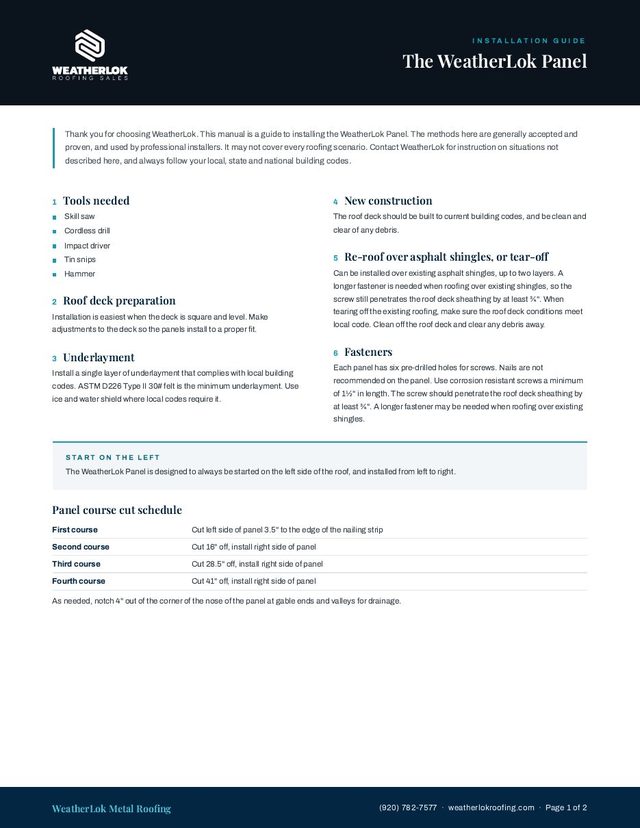

The installation guide
Written for professional installers. Page one starts with the tools: a skill saw, cordless drill, impact driver, tin snips and a hammer. Then it walks through deck prep, underlayment (30# felt to ASTM D226 Type II at minimum, plus ice and water shield where your code calls for it), new construction, and re-roofing over one or two layers of asphalt shingles with a longer screw.
The guide calls for corrosion-resistant screws at least 1½ inches long, driven at least ¾ inch into the deck sheathing. Nails are not recommended on the panel. Panels always start on the left side of the roof and run left to right, and a cut schedule shows exactly where to cut the first four courses.
Page two takes the trims one at a time: starter and drip edge, the steel channel, valleys, gables, hips and ridges, head walls and side walls, pipes and other roof penetrations, and the vent panel for attic venting. Use it alongside your local building code, and call us for anything it doesn't cover.
Need a document today?
Email us what you need and we will send it over. No forms, no runaround.
